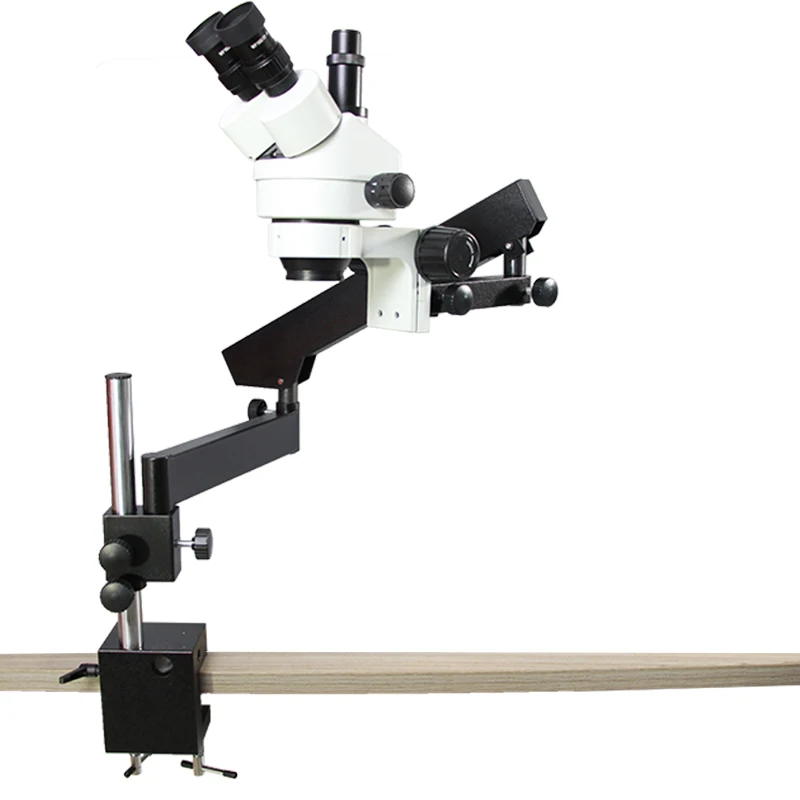

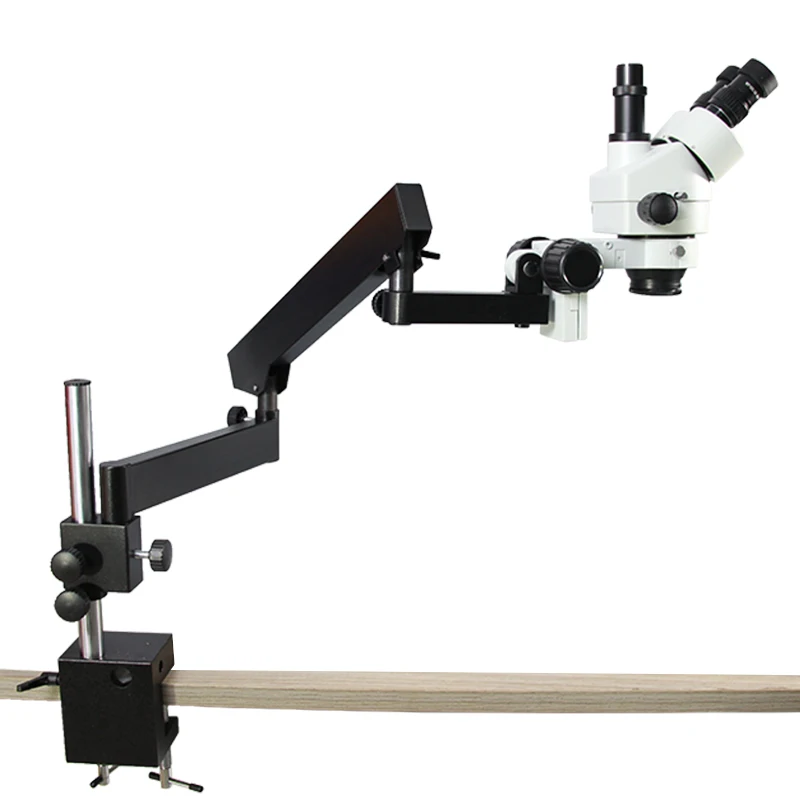

Luckyzoom Brand 3.5X-90X ARTICULATING ARM ZOOM STEREO MICROSCOPE SZM0.5X SZM2.0X Trinocular Microscopio Auxiliary Lens

49 Items
1
$628.00
Quantity
In stock

Luckyzoom Brand 3.5X-90X ARTICULATING ARM ZOOM STEREO MICROSCOPE SZM0.5X SZM2.0X Trinocular Microscopio Auxiliary Lens free shipping



 Important Note Before Buying:

1. Dear customers, thanks for visiting our store, we will choose DHL or TNT or UPS Or Fedex to ship the product according to your country and area even though you choose any of them, they are all free shipping when you place the order. Hope for your kind understanding.

2. For security purpose, we may need to pack some of the models into 2 packages, one is microscope head and another one is microscope stand. If you have any question, please contact us online before buying our microscopes.

3. When the product reaches your local custom, they may ask for custom tax, it is the receiver's responsibility to pay for the import custom tax, it is not claimed in time, the return fee will be paid by the receiver, thanks for your understanding.
4. Before Shipping, our professional and experienced warehouse colleagues will check test and pack it well. Don't worry.





aeProduct.getSubject()



Features:

  • A high quality super widefield optical system that offers 3.5X-90X zoom magnification power

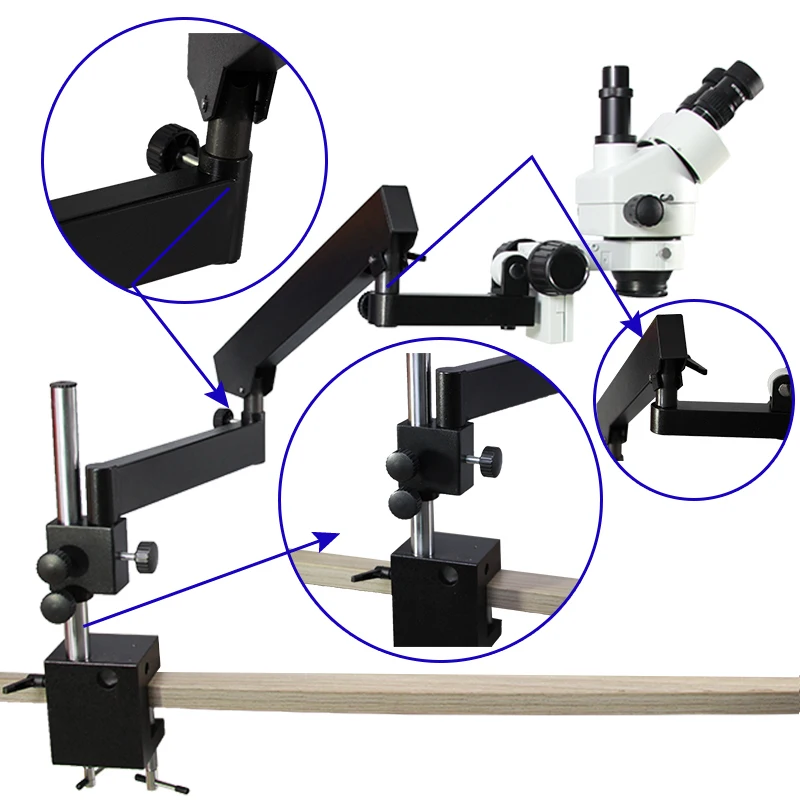

  • Versatile heavy-duty articulating arm with a vertical pillar and a clamp covers large working area
  • 4" (100mm) large working distance
  • 30mm Super Widefield 10X Eyepieces
  • Sharp stereo images over a super widefield view
  • High resolution with great flatness and contrast
  • Crystal clear original true color images
  • accurate alignment reduces eye strain for a More Comfortable Observation
  • Adjustable interpupillary distance
  • full optical glass elements
  • precise ground glass lenses
  • All metal mechanical components
  • Rubber eye-guards included



aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

Specifications:

  • Head: 45-degree inclined, 360-degree swiveling trinocular
  • Eyepieces: 30mm super widefield high-eyepoint WH10X/20MM
  • Auxiliary objective : SZM0.5X & SZM2.OX
  • Objective: 0.35-9.0X
  • Zoom Range: 6.4:1
  • Diopter Adjustment: +/-5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
  • Working Distance: 4" (100mm)
  • Field of View: 1-1/4" (33mm) super widefield
  • Accessories: eye-guards
  • 144 pcs led light 0-100% can control brightness 90-240V

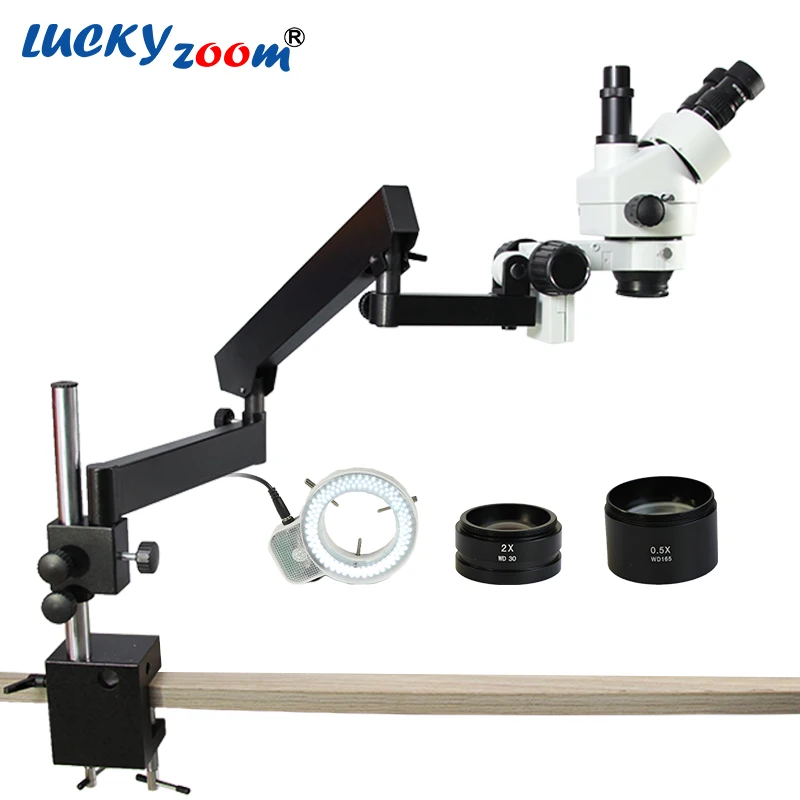

Packing List:

  • One Trinocular Zoom Microscope Head
  • One Pair of Super Widefield High-eyepoint 10X Eyepieces
  • One SZM0.5X WD165mm lens
  • One SZM2.0X WD30mm lens
  • One 144pcs led light 0-100% can control brightness
  • One Articulating Arm with a Pillar Clamp
  • One Focusing Rack
  • One Ring Light Adapter
  • One Pair of Eye-guards



aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

Optical Data:



Eyepiece Standard layout SZM0.5X SZM1.5X SZM2.0X
Work distance 100mm Work distance 165mm Work distance 45mm Work distance 30mm
Magnification Field video Magnification View field Magnification View field Magnification View field
WF10X/20mm 7.0X 28.6mm 3.5X 57.1mm 10.5X 19mm 14X 14.3mm
45X 4.4mm 22.5X 8.9mm 67.5X 3mm 90X 2.2mm
WF15X/15mm 10.5X 21.1mm 5.25X 42.8mm 15.75X 14.3mm 21X 10.7mm
67.5X 3.3mm 33.75X 6.7mm 101.25X 2.2mm 135X 1.7mm
WF20X/10mm 14.0X 14.3mm 7.0X 28.6mm 21.0X 9.5mm 28X 7.1mm
90.0X 2.2mm 45.0X 4.4mm 135.0X 1.5mm 180X 1.1mm



49 Items
1

Data sheet

Brand Name
LUCKY ZOOM
Model Number
SZM45TRFLB52144
Material
Metal
Magnification
3.5X-90X
Theory
Stereo Microscope
Drawtube
Trinocular
Magnification Ratio
500X & Under
eyepiece
WF10X/20mm
Working distance
100mm
Auxiliary objective
SZM2.0X & SZM0.5X
illuminator
144pcs led light
