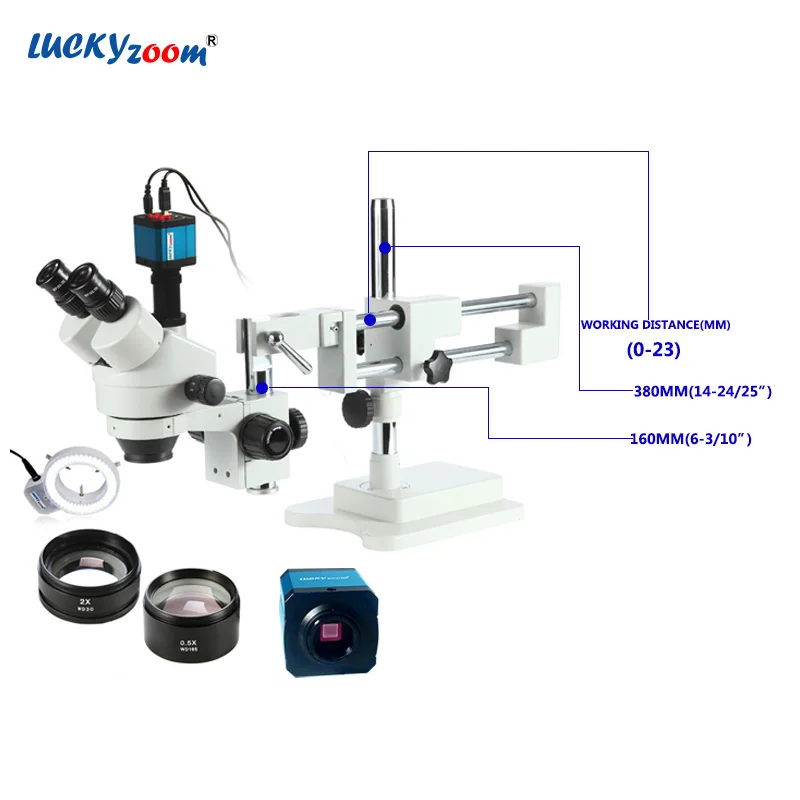

Luckyzoom 3.5X-90X Double Boom Stereo Zoom Trinocular Microscope 14MP Camera 144LED Objective Lens Microscopio Free Shipping

94 Items
1
$921.00
Quantity
In stock

HTB1sTAfwnqWBKNjSZFxq6ApLpXat.jpg HTB14SQjB2iSBuNkSnhJq6zDcpXaa.jpg
HTB1EUNPKAOWBuNjSsppq6xPgpXab.jpg HTB1YTR_B5CYBuNkHFCcq6AHtVXa8.jpg
HTB1QWN_Kr1YBuNjSszhq6AUsFXaZ.jpg HTB1v9HoKv1TBuNjy0Fjq6yjyXXax.jpg HTB14zJ9KAOWBuNjSsppq6xPgpXah.jpg HTB1z8I8B2uSBuNkHFqDq6xfhVXaL.jpg
HTB14COnKrSYBuNjSspfq6AZCpXaB.jpg HTB19Fj2wbZnBKNjSZFKq6AGOVXav.jpg HTB1uJ6rdjfguuRjy1zeq6z0KFXan.jpg HTB1aHTddjbguuRkHFrdq6z.LFXa6.jpg

Luckyzoom 3.5X-90X Double Boom Stereo Zoom Trinocular Microscope 14MP Camera 144LED Objective Lens Microscopio Free Shipping

QQ20181011143416

 Important Note Before Buying:


1. Dear customers, thanks for visiting our store, we will choose DHL or TNT or UPS Or Fedex to ship the product according to your country and area even though you choose any of them, they are all free shipping when you place the order. Hope for your kind understanding.

2. For security purpose, we may need to pack some of the models into 2 packages, one is microscope head and another one is microscope stand. If you have any question, please contact us online before buying our microscopes.

3. When the product reaches your local custom, they may ask for custom tax, it is the receiver's responsibility to pay for the import custom tax, it is not claimed in time, the return fee will be paid by the receiver, thanks for your understanding.

4. Before Shipping, our professional and experienced warehouse colleagues will check test and pack it well. Don't worry.



3

Note: This is not a simul-focal head microscope, if you need the simul-focal one, please visit this link:

http://www.aliexpress.com/store/product/Luckyzoom-3-5X-90X-Simul-Focal-Double-Boom-Stand-Trinocular-Stereo-Zoom-Microscope-14MP-HDMI-Camera/300856_32850345321.html





FEATURES:

  • 3.5X-90X Extremely Large Zoom Magnification Power
  • Trinocular Design for High Quality Photo, USB PC and CCD Video Imaging
  • Erect Stereo Sharp Images Over a SUPER Widefield of View
  • Accurate Alignment Ensuring Fatigue-Free Long Time Viewing
  • Crystal Clear Original True Color Images
  • 45 Inclined Trinocular Head with SUPER Widefield High-Eyepoint Eyepieces
  • 30mm SUPER Widefield Eyepieces (see the difference in the above picture)
  • Both Ocular-Tubes with Adjustable Diopter
  • Adjustable Interpupillary Distance
  • Full Optical Glass Elements
  • Precise Ground Glass Lenses
  • 4" (100mm) Extremely Large Working Distance
  • Versatile Boom Stand Covering Large Working Area
  • Double-Arm Design for 3-Degree Freedom
  • Able to Place Microscope Head Toward to Any Direction
  • Heavy-Duty Cast Steel Stand Finished with Stain Resistant Enamel
  • Rugged Solid Cast Steel Base
  • 30mm SUPER Widefield Eyepieces Included
  • 165mm and 30mm working distance auxiliary objective



SPECIFICATIONS:

  • Head: 45 inclined 360 swiveling trinocular
  • Eyepiece: 30mm super widefield high-eyepoint WF10X/20mm
  • Objective: 0.7-4.5X
  • Auxiliary objective :SZM0.5X & SZM2.0X
  • Zoom Range: 6.4:1
  • Diopter Adjustment: 5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
  • Field of View: 2-1/2" (65mm) in diameter
  • Working Distance: 4" (100mm)
  • Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base

aeProduct.getSubject()

Camera Specification:

  • Model: Camera with HDMI USB2.0 two output
  • Image format: jpg
  • Image resolution: 4320*3240 for TF card.
  • Video format: AVI
  • USB Video resolution: 1280 *720 30FPS
  • White Balance: Auto
  • Light: Auto
  • Color: Color
  • Negative: Support
  • Morror: Left/right,Up/Down
  • Freeze: Support
  • OSD: English/Chinese
  • Line: different color,4 horizontal line , 4 vertical line,any positions

aeProduct.getSubject()





Led Feature:

  • 144 bright white LED bulbs
  • 100,000 hours of life
  • Intense and focused shadow-free illumination
  • The brightness of 0-100%Adjustable,high brightness
  • Variable intensity control
  • Power input: 100-240V, 50-60HZ
  • Suit for the dia of the lens: 30mm-63m

PACKING LIST:

  • One Trinocular Stereo Zoom Head
  • One Pair of Super Widefield High-Eyepoint WF10X Eyepieces
  • One SZM0.5X auxiliary objective WD 165 mm
  • One SZM2.0X auxiliary objective WD 30 mm
  • One 14MP HDMI Camera
  • One Double-Arm Boom Stand
  • One Focus Rack
  • One Pair of Eye-Guard
  • ​One 144PCS Led Light
  • The totally weight of package will be arround  28 kg,  ​The parcel will be ship by two parcel as the packing is specail designed  for protecting micrisocope purpose, pls ask the service to provid two packing ! !!!

QQ20181008172808

aeProduct.getSubject()

Note: 1/2 CTV is not included.Highly recommend you can buy one!

Optical Data:

Eyepiece Standard layout SZM0.5X SZM1.5X SZM2.0X
Work distance 100mm Work distance 165mm Work distance 45mm Work distance 30mm
Magnification Field video Magnification View field Magnification View field Magnification View field
WF10X/20mm 7.0X 28.6mm 3.5X 57.1mm 10.5X 19mm 14X 14.3mm
45X 4.4mm 22.5X 8.9mm 67.5X 3mm 90X 2.2mm
WF15X/15mm 10.5X 21.1mm 5.25X 42.8mm 15.75X 14.3mm 21X 10.7mm
67.5X 3.3mm 33.75X 6.7mm 101.25X 2.2mm 135X 1.7mm
WF20X/10mm 14.0X 14.3mm 7.0X 28.6mm 21.0X 9.5mm 28X 7.1mm
90.0X 2.2mm 45.0X 4.4mm 135.0X 1.5mm 180X 1.1mm



HTB1Y3ImKgaTBuNjSszfq6xgfpXaC.jpg HTB1zujbKxWYBuNjy1zkq6xGGpXav.jpg HTB1_ne0djfguuRjSszcq6zb7FXa9.jpg HTB1GN4wwdknBKNjSZKPq6x6OFXaZ.jpg HTB1A567wcj_B1NjSZFHq6yDWpXaz.jpg HTB1Is.jd5b.BuNjt_jDq6zOzpXad.jpg
HTB1JFBRKpOWBuNjy0Fiq6xFxVXag.jpg HTB1AHiQKxGYBuNjy0Fnq6x5lpXaK.jpg HTB1mAJqKr5YBuNjSspoq6zeNFXaM.jpg HTB1ZsZzKkKWBuNjy1zjq6AOypXaq.jpg HTB1DbQ2B8mWBuNkSndVq6AsApXas.jpg HTB1cC7cwlsmBKNjSZFFq6AT9VXal.jpg





94 Items
1

Data sheet

Brand Name
LUCKY ZOOM
Model Number
SZM45TRSTL2 52 14MP 144LED
Type
Trinocular Stereo Microscope
Material
Metal
Camera
14MP HDMI camera
Features
High Definition
Magnification
7x-45x
Theory
Stereo Microscope
