Micromake 3d printer L3 wifi UV light curing SLA/LCD/DLP 3d printer high precision 2K impresora for Jewelry dentistry photon

100 Items
1
$781.00
Color
  • only printer
  • add 200mnl resin
Quantity
In stock




Description:

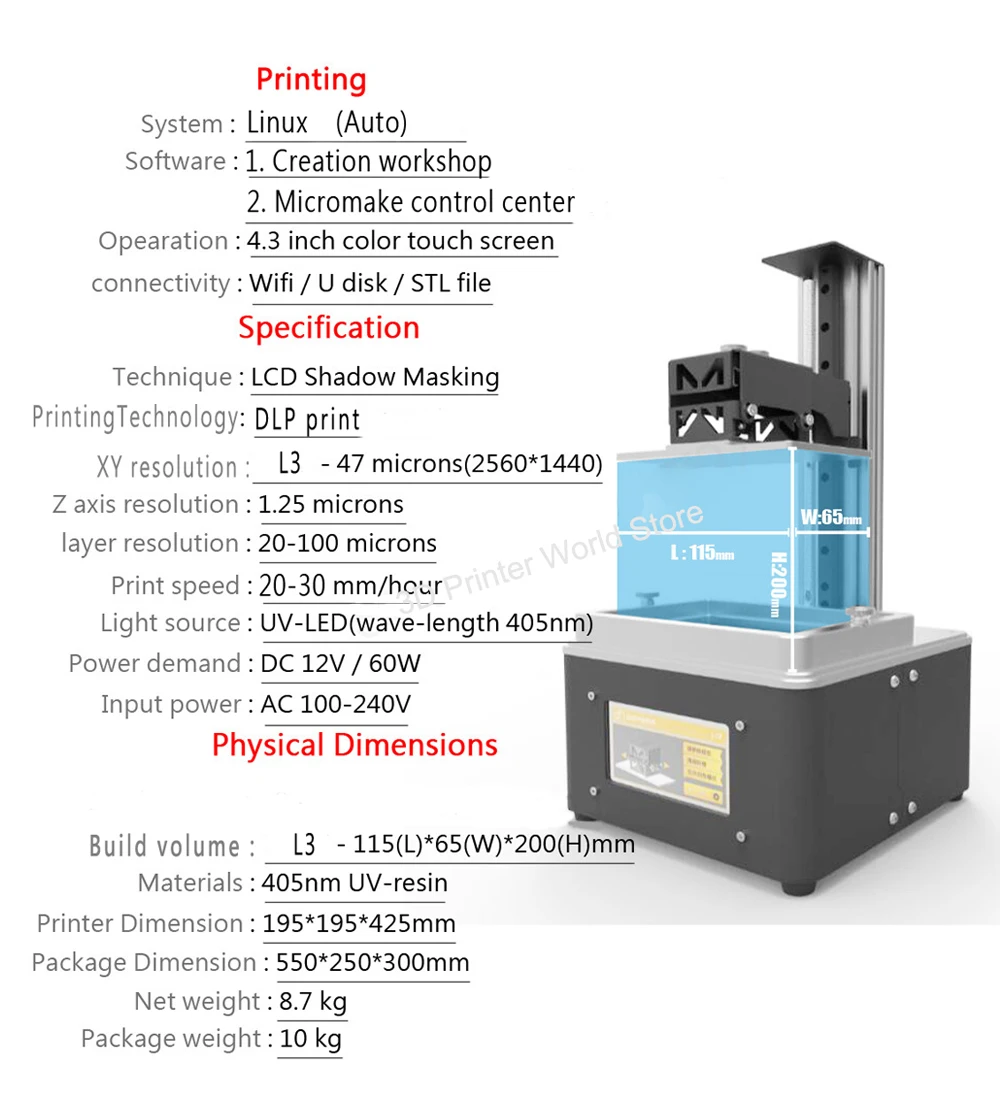

  • Mode : Micromake L3 DLP 3d printer(new)
  • Operating System : Linux
  • Screen : 4.3-inch touch color screen

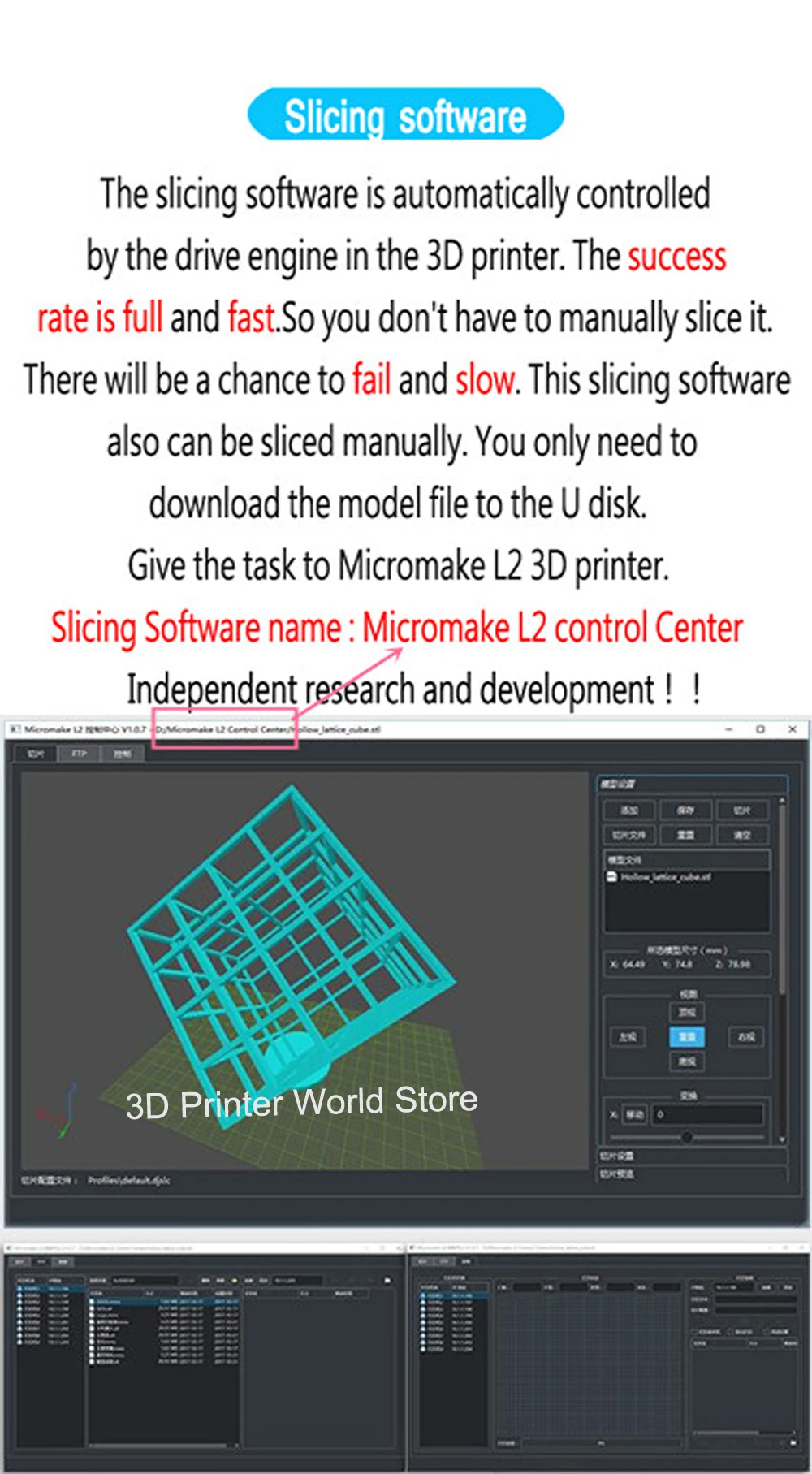

  • Slicer software : Creation workshop & Micromake control center
  • Connection:  WIFI/U disk/STL file.
  • Offline printing:support
  • Technology: DLP
  • Technique: LCD Shadow Masking
  • Light-source : UV integrated light(wavelength 405nm)
  • XY DPI : 47 um (2560*1440)
  • Z axis resolution :  1.25 um
  • Layer resolution :  20 ~ 100um
  • Printing speed :  20-30mm/h
  • Rated Power :  60W
  • LCD display: 5.5inch
  • (um=micron
  • Printing volume : 108mm *65mm *200mm (4.25″*2.56″*7.88″)
  • Printing material : 405nm photosensitive resin
  • Product weight: 9.0000 kg
  • Package weight: 10.5000 kg
  • Product size: 19.50 x 19.50 x 42.50 cm / 7.68 x 7.68 x 16.73 inches
  • Package size: 30.00 x 25.00 x 55.00 cm / 11.81 x 9.84 x 21.65 inches





Note:

1.The machine is shipped in the whole machine, no need to install.

2.Google Cloud has a comprehensive video and text description.easy to use.

3.WIFI can link machine to transfer files.

4.Files smaller than about 20M can be sliced directly in the machine.no need to slice on the computer software.

5.We will send power specifications according to your country. If there is a demand, please let us know in advance.

6.Courier restricts liquid delivery. If you order a machine and resin, the resin cannot be shipped with it (except for 200ml in the package).

   If you want resin, please place another order and go directly to my store.thanks

7.Language:we have Spanish and English.default English.if you need for Spain.please leave a message.otherwise we will send English.



https://drive.google.com/drive/folders/0B1DQUrzkDP-tNDU0NXhVcGhlc0k

There are very detailed tutorials and video tutorials in Google Cloud Drive,
because L3 is an upgraded version, and there are great improvements
in all aspects, so the operation is the same.

23-1-155

2557 (2)

39_800



21





21

3536_



33-_

33--_

33---_

33-----_



https://drive.google.com/drive/folders/0B1DQUrzkDP-tNDU0NXhVcGhlc0k

There are very detailed tutorials and video tutorials in Google Cloud Drive.



33-11036-1



51_

.52_



3459



HTB1Pm6hr1uSBuNjy1Xcq6AYjFXa8



HTB1oNlfjRyWBuNkSmFPq6xguVXa5







100 Items
1

Data sheet

Brand Name
Micromake
Model Number
Micromake L3 DLP 3D printer
Touch Screen
4.3 inch large color touch screen
Color Print Speed
20-30mm/h
Layer resolution
20 ~ 100um
Print format
STL / CWS / MMS
Z axis resolution
1.25 um
XY resolution
(47microns) 2560*1440
Package weight
about 10.5kg
Technique
LCD Shadow Masking
Syetem
Linux syetem
Slicer sofware
Creation workshop & Micromake Control Center
Printing Technology
DLP Print
Light-source
UV integrated light
Resin model
405nm UV/photosensitive resin
Three print models
WIFI / U disk / STL file
Mode of operation
99% operations can done on touch screen automatically
Slice mode
Built-in engine driver software automatically and quickly(small file)
Special function 1

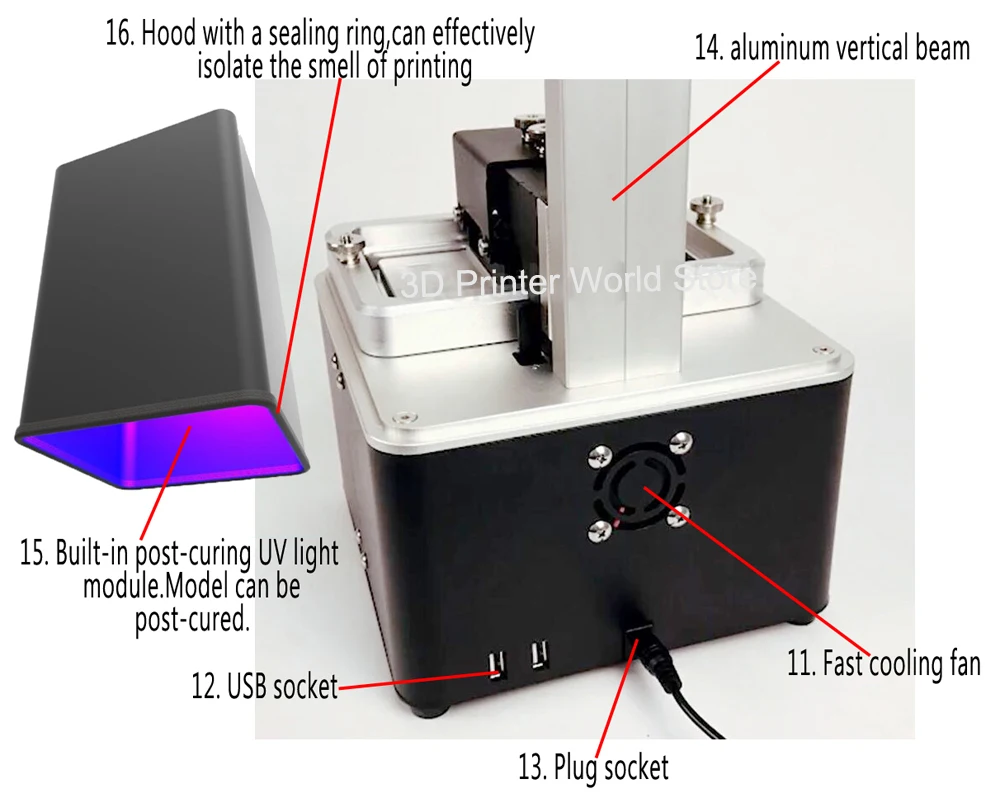

Built-in post-curing UV light module hood
Special function 2
Stop and star printing at any time
Special function 3
Supports one computer controls multiple 3d printers
Machine size
195mm * 195mm * 425mm
Machine weight
about 8.7kg
Packing size
550mm * 250mm * 300mm
Build volume
115(L)*65(W)*200(H)mm
