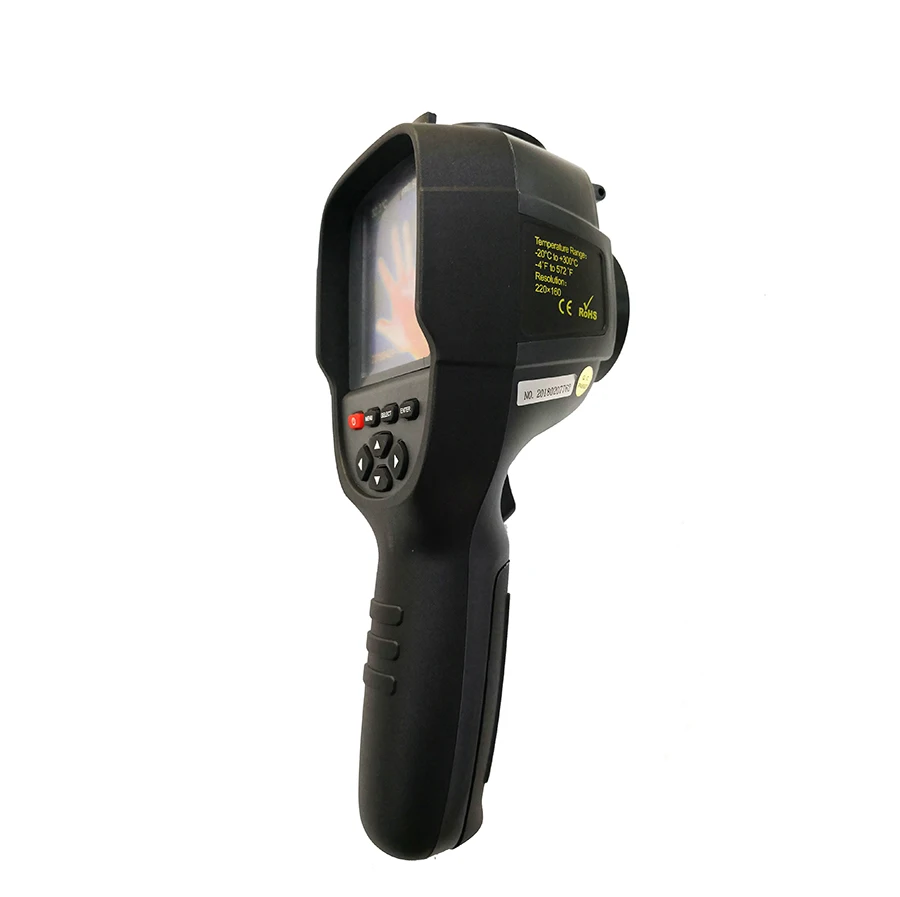

HT-18 Digital Thermal camera Infrared IR thermal imager temperature imaging camera tester for Water pipe high resolution

9898 ks
1
574,00 US$
Quantity
Skladem


3.2'' Infrared Temperature Heat IR Digital Thermal Imager Detector Camera with storage -20~300 Degree 220x160 Resolution

HT-18 Digital Thermal camera Infrared IR thermal imager temperature imaging camera tester for Water pipe high resolution
Related products:

Shining Points:

30USD will be reduced in your payment automaticly when the toal value reaches 410USD



  • --3.2'' full color screen, allows for detailed showing of infrared generated images;
  • --220x160 resolution and 0.3 million pixel visible image resolution, high definition of images;
  • ---20~300°/-4°~572° temperature measurement range, 2.5° accuracy for better operation;
  • --5 kinds of palette for choice: rainbow, iron red, cold color, black & white and white & black;
  • --automatic setting: 5 mintues/20 minutes/ not power off automatically;
  • --built-in 4GB SD card for storage, the pics can be also transferred to television, computer or other devices for checking;

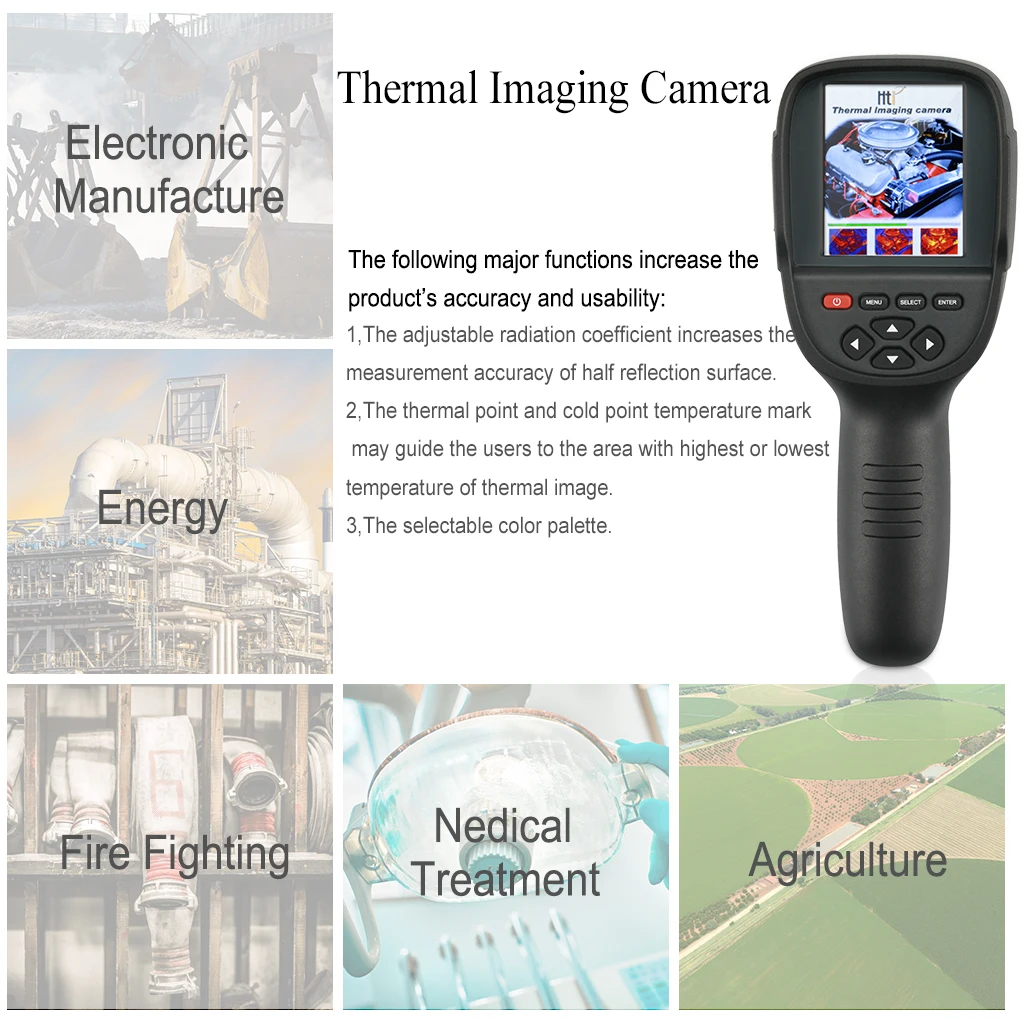

  • --wide application at medical, fire-fighting, archaeology, traffic, farming, electronic manufacture and other fields;
  • --seperate button for specific function, which is quite easy for you to turn it on or off, delete or check pictures;
  • --mini and portable for 90×105×223mm size and 289g weight, attached pouch allows for more convenient carrying;
  • --ergonomic handle, which can be used and held comfortably;


Specification:

  • Display screen: 3.2'' full-color screen
  • Infrared image resolution: 220×160
  • Visible image resolution: 0.3 million pixel
  • Thermal sensitivity: 0.07°
  • Temperature measurement range: -20~300°(-4°~572°)
  • Measurement precision: ±2.5° or ±2.5%
  • Wavelength coverage: 8-14um
  • Field angle/shortest focus length: 27°×35°/0.5m
  • Emissivity: Adjustable from 0.1 to 10.0
  • Focus mode: Fixed
  • Image capture frequency: 8Hz

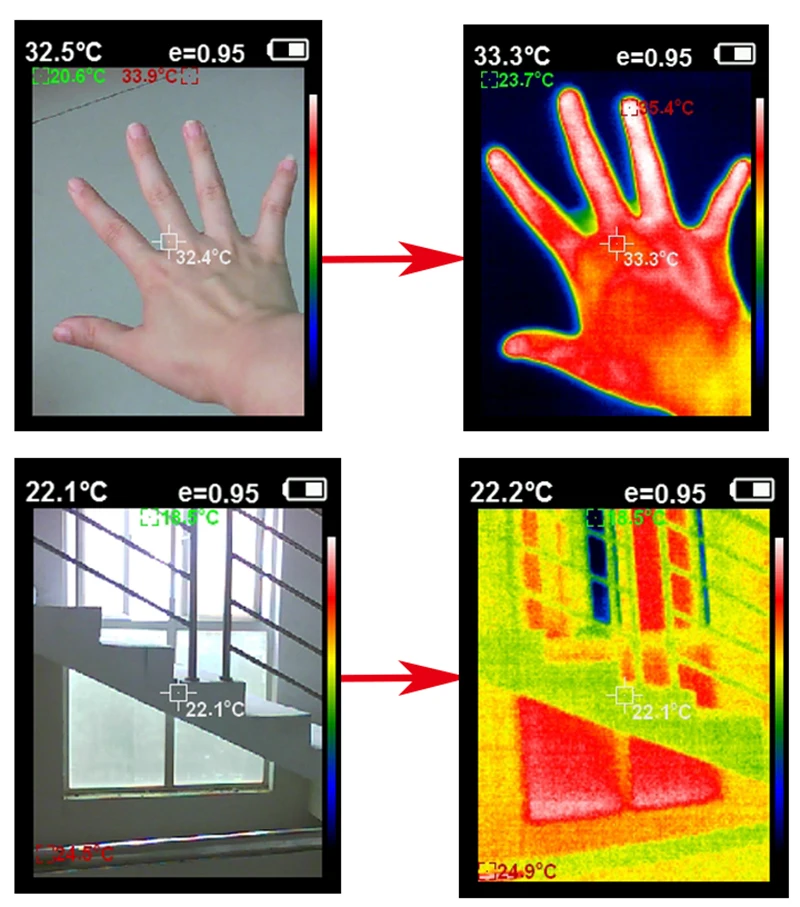

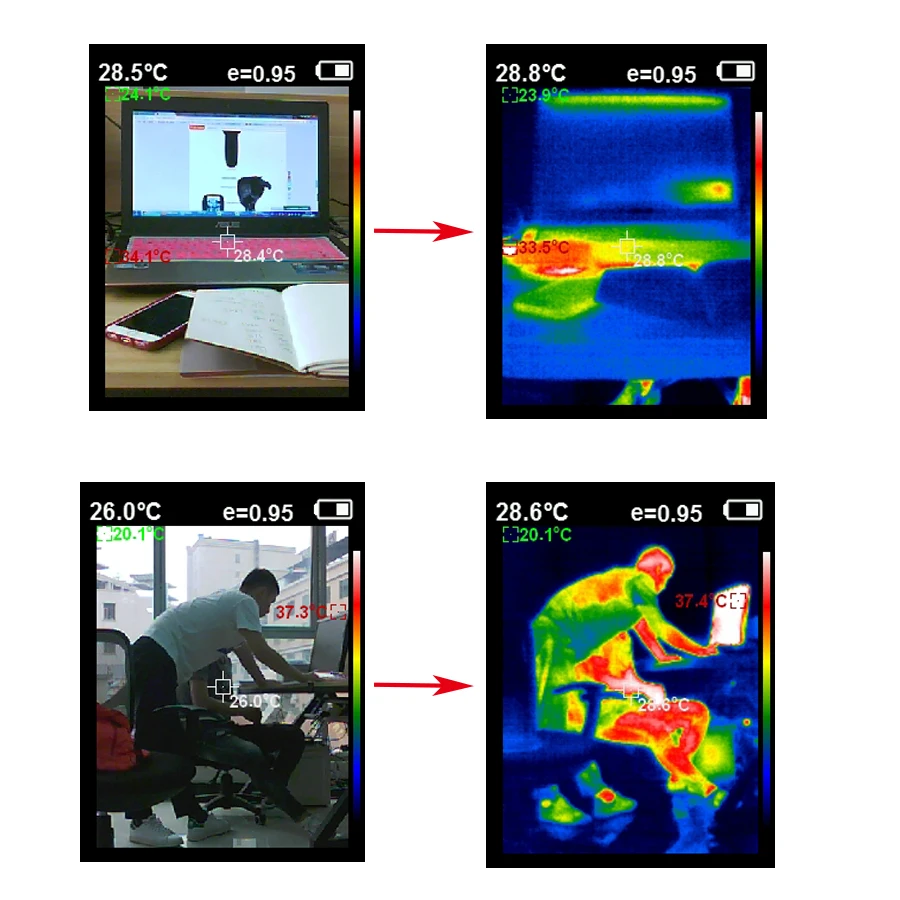

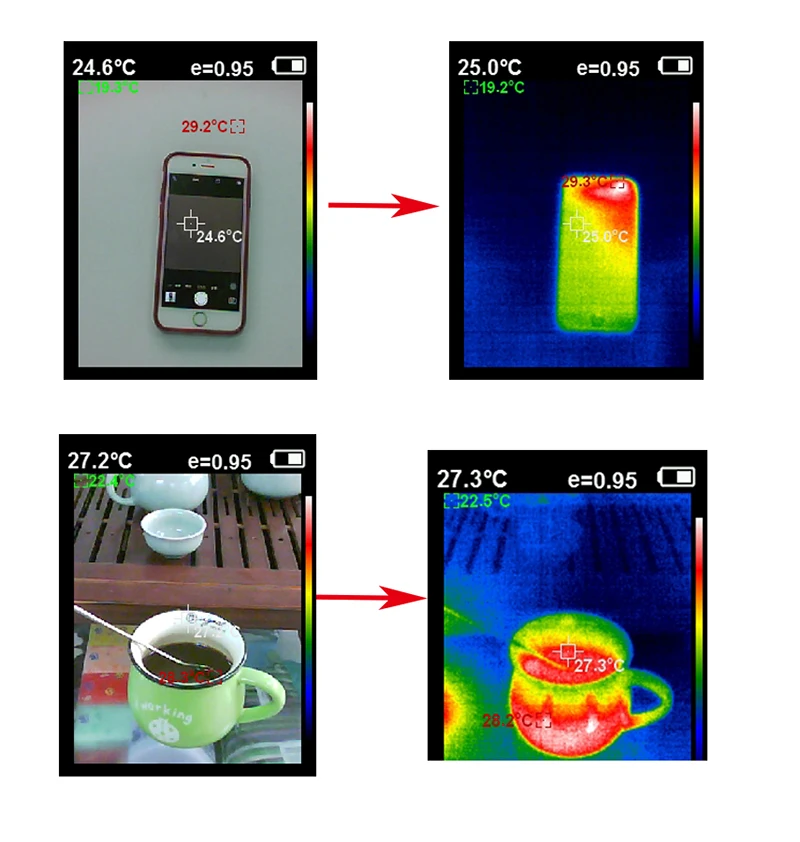

  • View option: full infrared and full vision Visible image with 25% step length
  • Storage medium: built-in 4G
  • Image format: JPG
  • Power supply: built-in chargeable 18650 batteries
  • USB: Micro USB2.0
  • Automatic power-off time: 5 mintues/20 minutes/ not power off automatically
  • Size: 90×105×223mm
  • Weight: 289g
  • Work temperature: 0° to 50°
  • Storage temperature: -40° to 80°
  • Humidity: <85RH

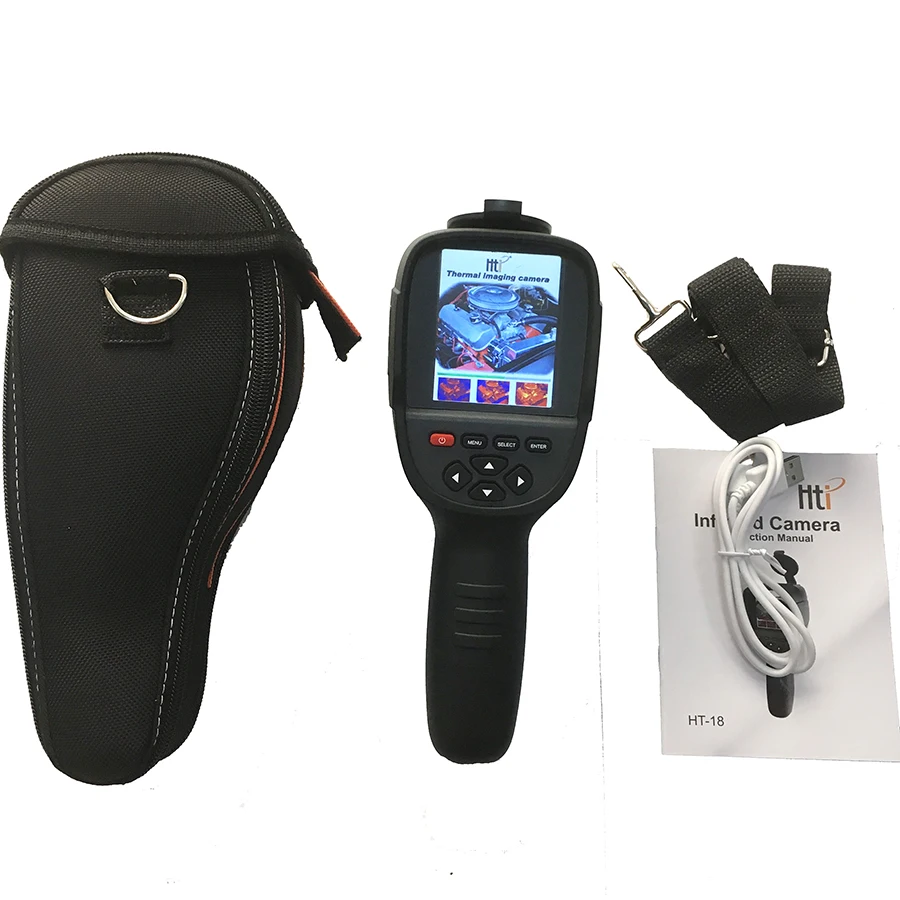

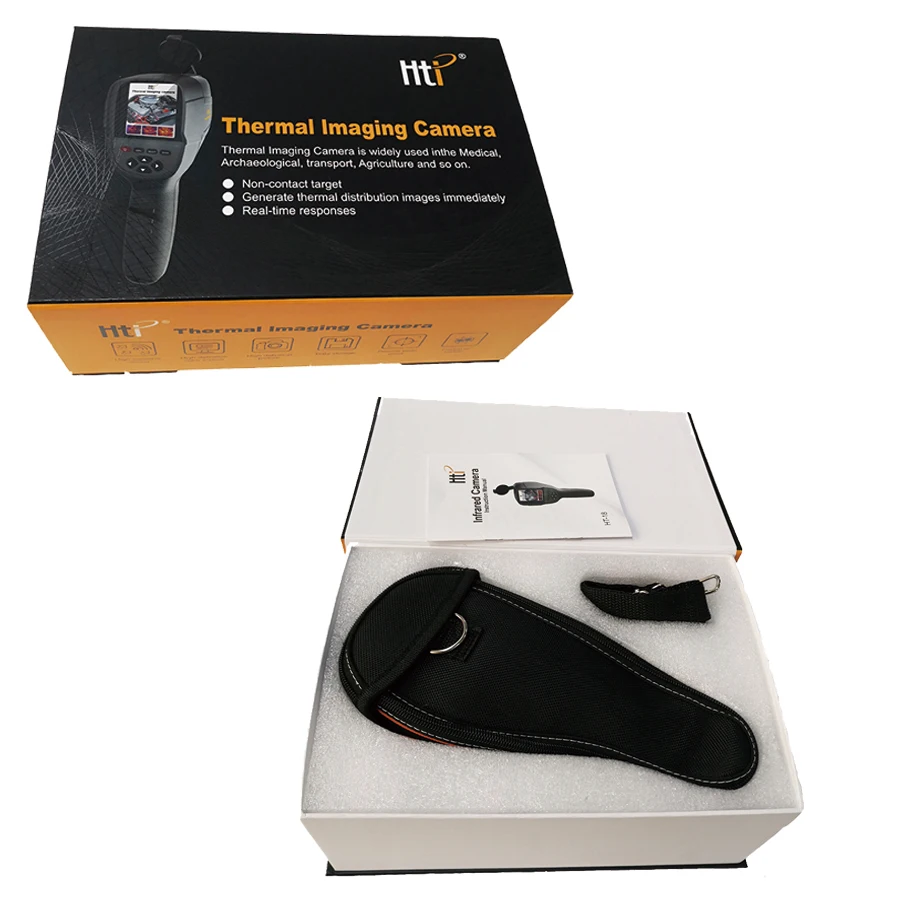

Package Includes:

  • 1 x infrared temperature detector
  • 1 x cable
  • 1 x user manual
  • 1 x carry pouch
  • 1 x carry pouch strap
  • 1 x cardboard package box

HTB1CNkLlwaTBuNjSszfq6xgfpXan.jpg?width=

HTB18f0clL5TBuNjSspcq6znGFXam.jpg?width=

24-1

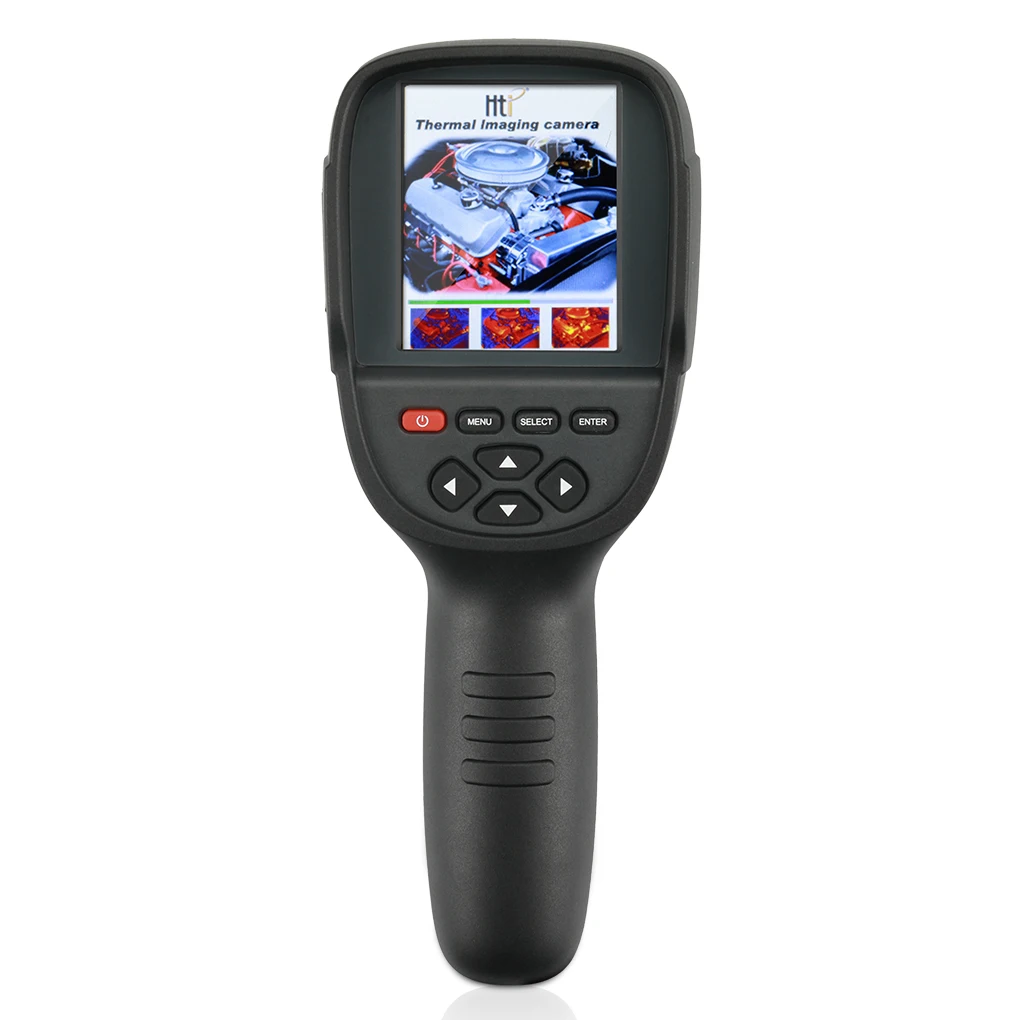

HTB1Q77ClrSYBuNjSspiq6xNzpXaU.jpg?width=

HTB1ktJAlKuSBuNjy1Xcq6AYjFXaP.jpg?width=




58QQ20180424155350QQ20180424155404QQ20180424155408QQ20180424155425QQ20180424155428

QQ20180424155437QQ20180424155443QQ20180424155446QQ20180424155452QQ20180424172710










9898 ks
1

Parametry

Display Size
2.0 - 3.9 Inches
Označení modelu
HT-18
Style
Handheld
Usage
Industrial
Display Type
Digital
Theory
thermal camera
Power Type
3.7V Li battery available
Max Measuring Temperature
49°C & Under
Infrared image resolution
220X160
Visible Image Resolution
0.3 million pixel
Range
-20~300C
Thermal sensitivity
0.07 degree
Wavelength coverage
8-14um
